XLPE Insulated Control Cables
Description :
The control cable has a very good property for resistant causticity of chemical solvent. It is used as a connecting wire of electrical equipment and instruments,transmitting wire of automatic control systems for rock oil, chemical, electric power, metallurgical and so on.
Specifications:
STANDARD
IEC 60227, IEC 60502, GB/T 9330, BS 6500
APPLICATION
Industrial Use
SPECIFICATIONS
Voltage(UO/U):
450/750V
CHEMICAL PERFORMANCE
Chemical & Oil resistance: Good
FIRE PERFORMANCE
Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine < 15%
CORE IDENTIFICATION
By Color
By Number
MECHANICAL PERFORMANCE
Minimum bending radius: x10 cable diameter
THERMAL PERFORMANCE
Maximum service temperature:90°C
Maximum short-circuit temperature:250°C(max. 5s)
Minimum service temperature:-40°C

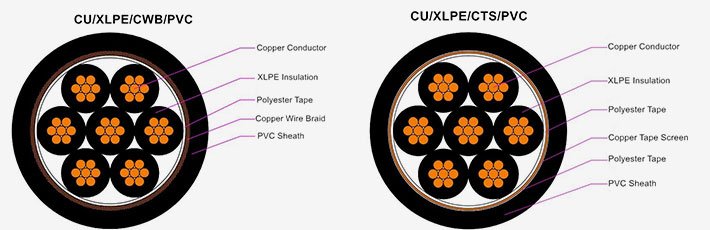

Cable Structure:
Data Sheet :
Do you want the Datasheet ? Send us a request and we will send it back to your email
